Description

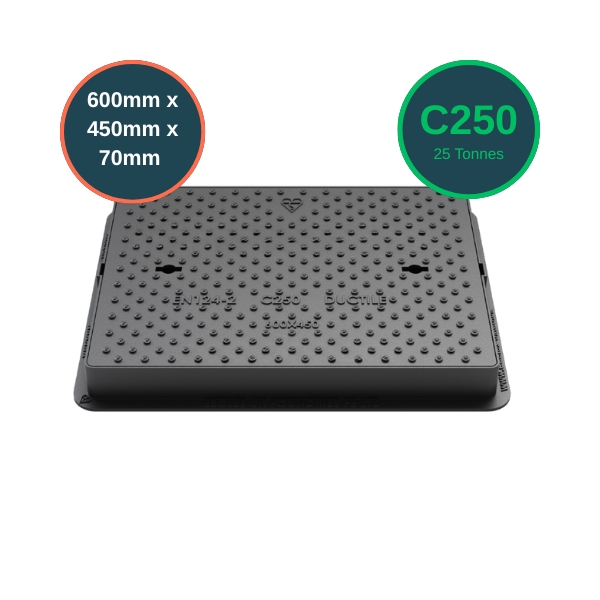

The 600mm x 450mm x 70mm C250 Manhole Cover & Frame (Single Seal Access Cover) is a medium-duty ductile iron access solution designed for use in kerbside locations, footpaths, and shared use areas. Rated to C250 (250kN / 25 tonnes) and certified to BS EN124-2:2015, it is suitable for installations up to 500mm from the kerb into a carriageway.
This unit features a 600mm x 450mm clear opening, a 710mm x 560mm base size, and a 70mm frame depth, making it a compact but effective solution for light traffic zones. Constructed from spheroidal graphite ductile iron to EN 1563:2018, the cover is finished in a black protective coating to resist corrosion and weathering.
The single seal frame provides an effective grease-packed airtight barrier, helping reduce odours and surface water ingress. Its high-grip patterned surface is independently tested to deliver a PSRV rating over 70, ensuring safe pedestrian access even in wet conditions — validated by a UKAS-accredited third-party lab.
This product is BSI Kitemark certified, meets the detailed design requirements of CD534, and supports sustainability goals through full recyclability and reduced lifecycle emissions.
Key Features
Load Rating: Certified C250 (250kN / 25 tonnes), Group 3, BS EN124-2:2015
Material: Spheroidal graphite ductile iron
Design: Single seal system for airtight fit using grease
Anti-Slip Pattern: Surface tested to PSRV >70
Finish: Black coated for corrosion protection
Compliance: BS EN124-2:2015, CD534, BSI Kitemark certified
Sustainability: Fully recyclable, durable, low whole-life cost
Specifications
Size: 600mm x 450mm clear opening, 710mm x 560mm base, 70mm depth
Material: Ductile iron
Connection Type / Load Rating: C250 (250kN / 25 tonnes)
Standard: BS EN124-2:2015
Colour: Black coated
Applications
• Kerbside drainage and access points
• Shared footways and residential surfaces
• Utility chambers in footpaths or driveways
• Light-traffic urban environments
Why Choose Stanley John LTD
Stanley John LTD is based in Newbury, Berkshire and supplies certified manhole covers throughout Berkshire, Hampshire, Wiltshire, Oxfordshire, Surrey, Greater London and more. Our C250-rated products ensure safe, compliant access in light traffic environments. Explore our full Manhole Covers & Gully Gratings range.
Order the 600mm x 450mm x 70mm C250 Manhole Cover & Frame (Single Seal Access Cover) today for certified access in kerbside and pedestrian areas. Order online now from Stanley John LTD.
