Description

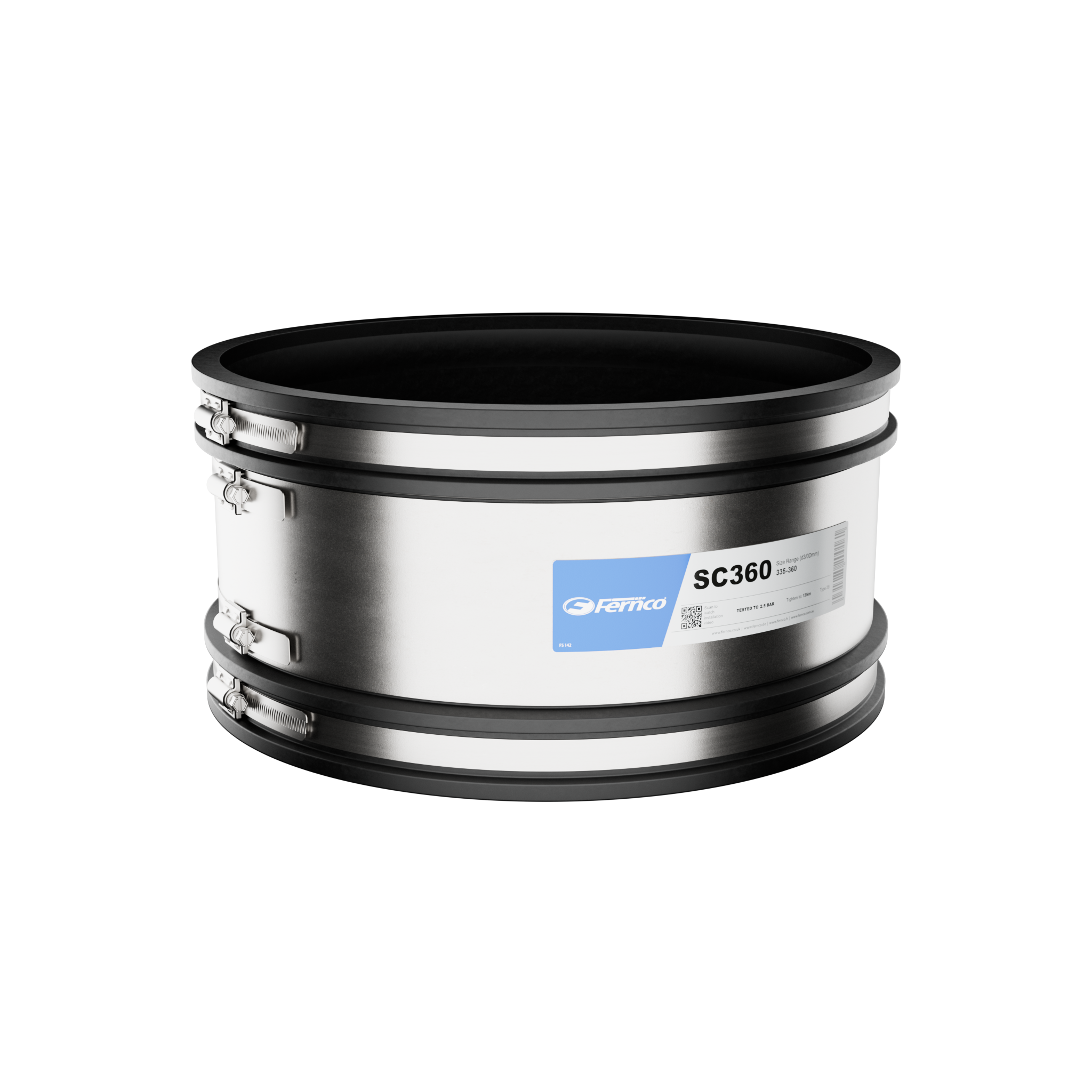

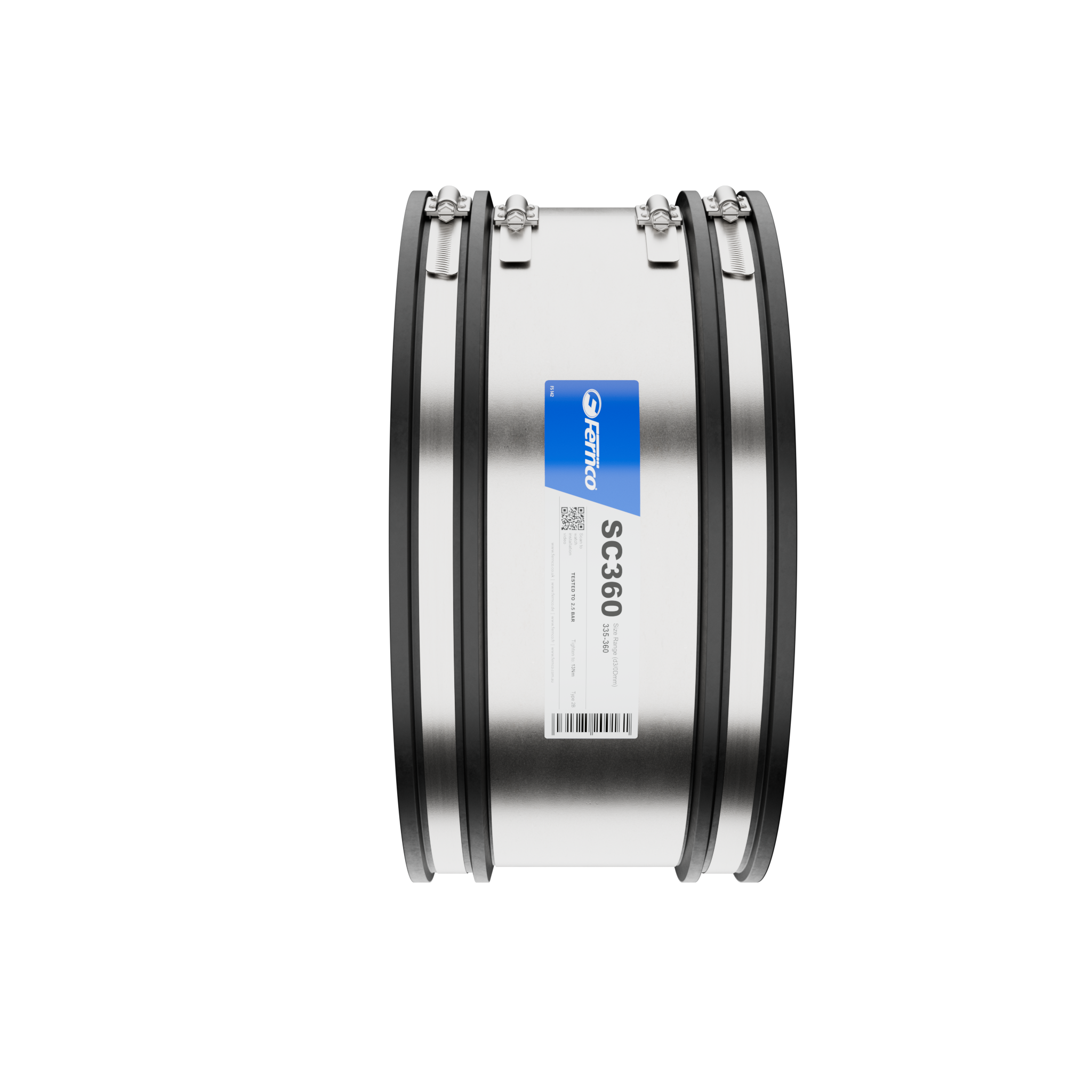

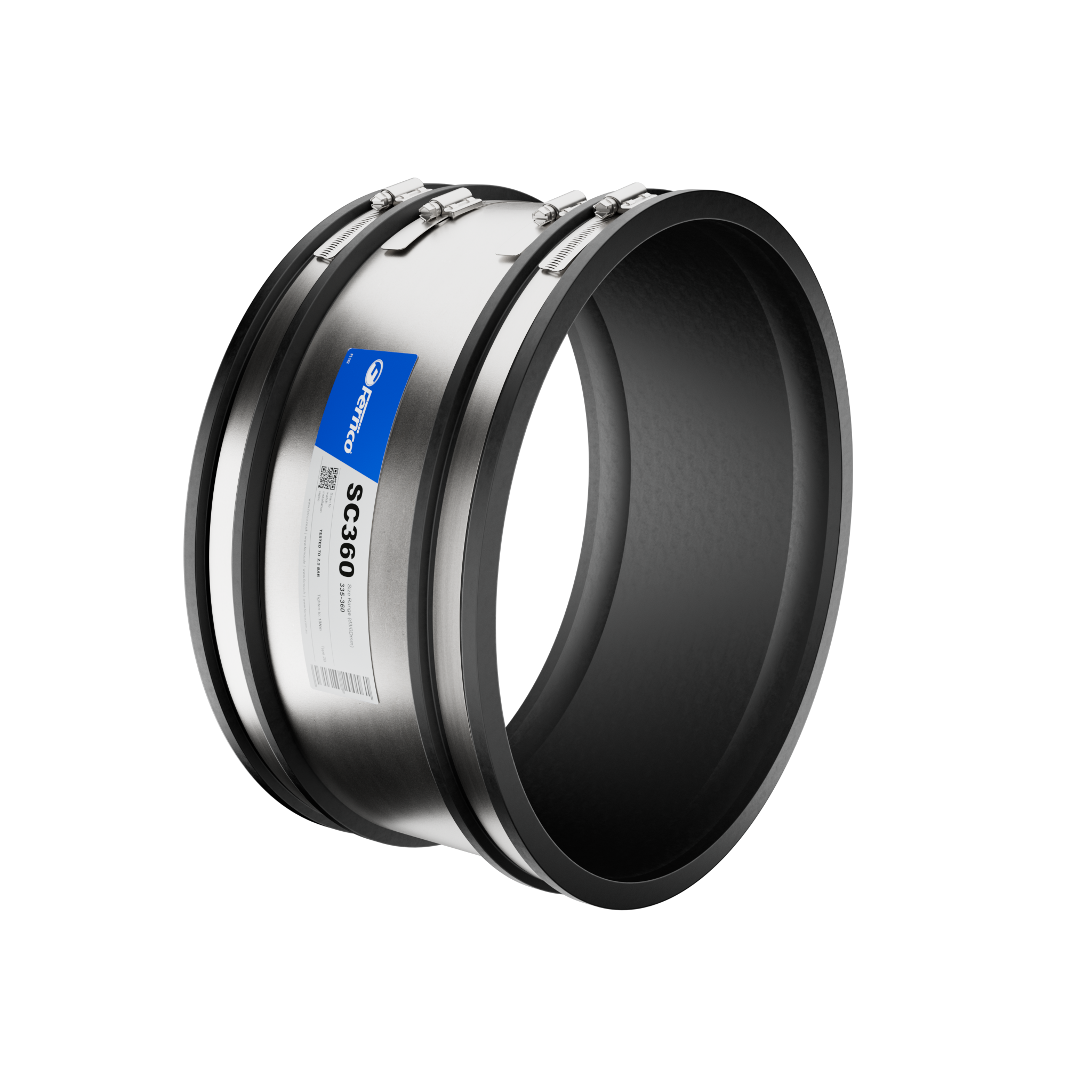

The Flexible Standard Coupling (335-360mm) is designed to form a watertight seal between same-diameter pipes in underground and non-pressurised systems. It’s ideal for use in sewers, drains, and vent lines where secure, flexible joints are essential for reliability and long service life.
Fernco manufactures the most extensive range of shear banded couplings available in the marketplace and has revolutionised traditional pipe repair methods over the years. Fernco Shear Banded Couplings are specifically designed to connect and repair pipes on adopted sewer and drainage applications.
Shear banded couplings are a requirement of the UK water companies when connecting onto their assets. This requirement forms part of Water Industry Specification (WIS) 4-41-01, which outlines the requirements to connect pipes on adopted systems using only shear banded couplings.
Fernco Shear Banded Couplings have the ability to connect two pipes with the same or similar outside diameter (OD), and also have the flexibility to accommodate small differences in pipe OD’s. When the pipe OD’s are outside of the limitations of a Shear Banded Coupling, ‘Bushes’ can be used to make up the annual space between the smaller pipe OD and the Shear Banded Coupling.
Manufactured from high-performance EPDM rubber and fitted with corrosion-resistant 304 stainless steel bands, this coupling includes an integrated shear band to resist deflection, shear loads, or vacuum effects from heavy backfill or site activity. It provides a strong and adaptable connection, even in demanding conditions.
This product complies with UK and international standards and is suitable for use on all common pipe materials, including PVC-U, clay, cast iron, copper, and pitch fibre. It is rated for constant internal pressure up to 2.5 bar.
Key Features
- Material: EPDM rubber sleeve with stainless steel bands
- Shear Resistance: Integrated shear band for heavy-load stability
- Performance: Watertight seal at up to 2.5 bar
- Compatibility: Joins all common pipe materials of matching size
- Installation: Easy to install with torque wrench
Specifications
- Size: Fits 335-360mm pipe outer diameters
- Material: EPDM rubber with stainless steel (304) bands
- Connection Type: Flexible standard coupling with shear band
- Temperature Range: –50°C to +80°C continuous operation
Applications
- Joining plain-ended pipes
- Repairing broken or damaged pipe sections
- Sewer and drain upgrades or realignment
- Soil and vent pipework
- Pipe runs near manholes or structural movement areas
- Creating flexible joints between cut or mismatched pipes
Why Choose Stanley John LTD
Stanley John LTD is based in Newbury, Berkshire and supplies across the UK. Trusted for quality, fast service, and compliant drainage products.
Explore our full Pipe Couplings range.
Order Now
Order the Flexible Standard Pipe Coupler (335-360mm) today for durable, watertight pipe connections. Available online now from Stanley John LTD.
